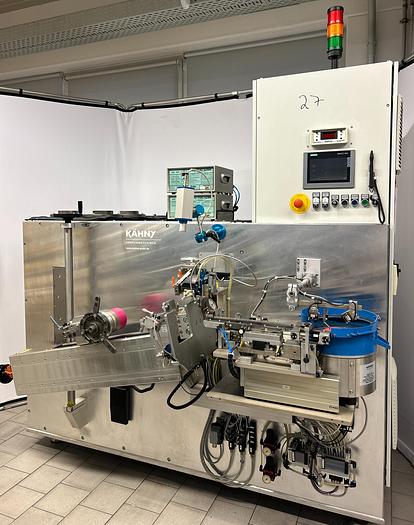

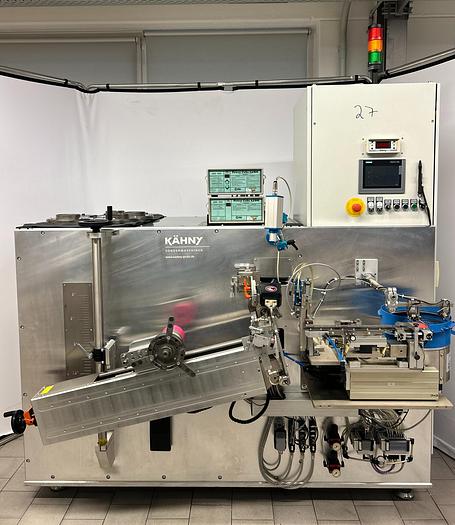

2014 Kähny SLM_K08
2014 Kähny SLM_K08
Description
Suitable for automatically soldering hard metal teeth onto circular saw blades.
Accessories:
Integrated water cooler,
pyrometer,
automatic tooth feed,

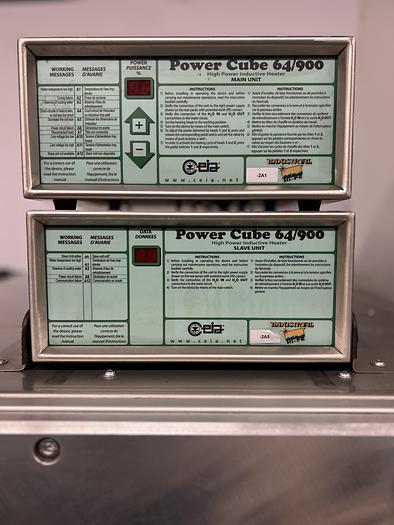

2 x Powercube 64 generators.
Specifications
| Manufacturer | Kähny |
| Model | SLM_K08 |
| Year | 2014 |
| Condition | Used |
| Stock Number | M02094 |
| Circular saw blade diameter | 305-610 mm |
| circular saw blade bore diameter | Max. 130 mm |
| Tooth dimensions length | 7.9 - 12.7 mm |
| tooth dimensions width | 2.54 - 6.35 mm |
| tooth dimensions height | 2.4 - 3.18 mm |
| rake angle | -10° to +30° |
| Performance up to 6-7 teeth per minute | depending on the thickness of the blade and the size of the HM tooth |
| power of the RF generator | 5 kW |
| mass | 900 kg |
| Dimensions W x D x H = | 2100 x 1500 x 2300 mm |
| colour | gray/metallic |
