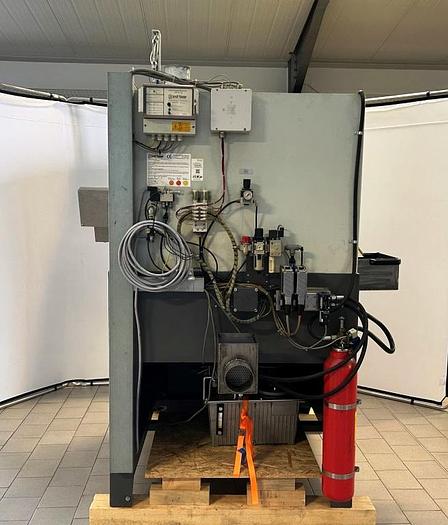

2009 Hoffmann S-V8
2009 Hoffmann S-V8
Description

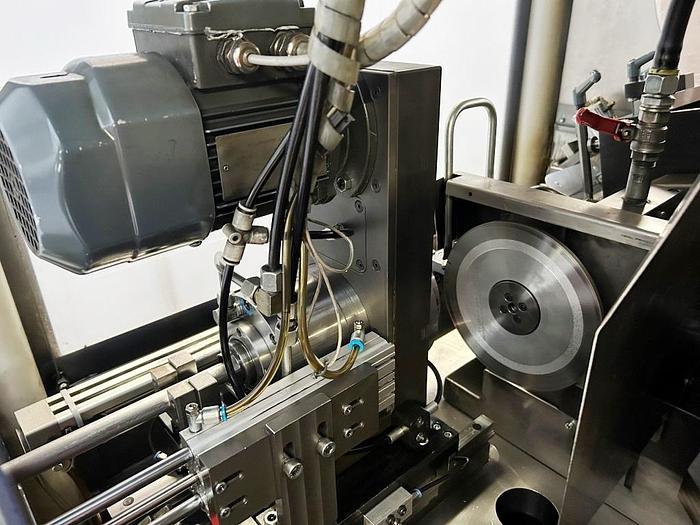

Suitable for chamfering and surface grinding of hard metal rods.
Accessories:
Full cladding,
Wet grinding device,
Loading magazine for workpieces from 30 - 150 mm,
Hydraulic feed of the grinding head,
Hydraulic feed of the workpiece spindle head,
Hydraulic workpiece clamping of the cylindrical grinding device,
Preparation for connecting an extraction system,

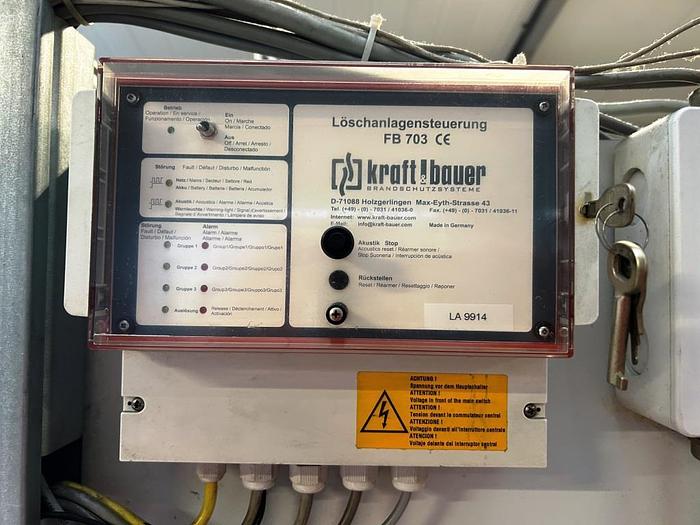

Automatic fire extinguishing device,

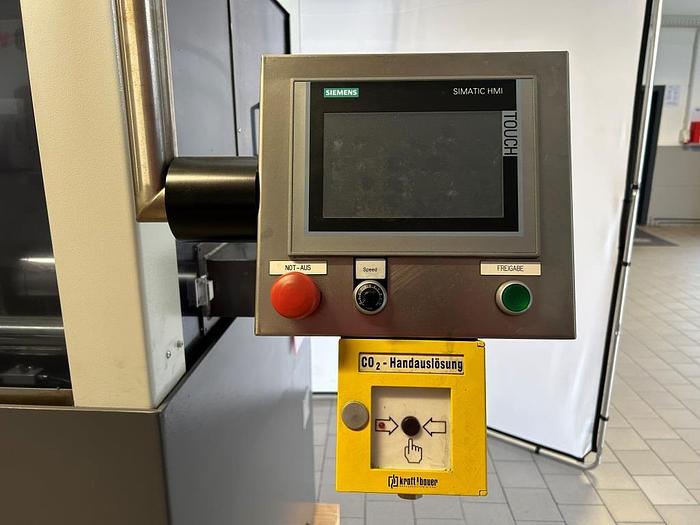

Touch panel TP 177 A.
Specifications
| Manufacturer | Hoffmann |
| Model | S-V8 |
| Year | 2009 |
| Condition | Used |
| Stock Number | M02112 |
| workpiece diameter automatic mode | 3 - 20 mm |
| workpiece diameter semi-automatically | 3-32mm |
| workpiece length semi-automatic | 3-32mm |
| workpiece length | 30-150 mm |
| Drive power grinding spindle | 4.0 kW |
| Spindle speed grinding spindle | 2000 rpm, |
| speed of the cylindrical grinder | 1500 rpm. |
| cutting wheel diameter | Max. 200 mm |
| Electrical connection | approx. 7 kW (400 V / 50 Hz) |
| Dimensions L x W x H | 2000 x 1500 x 1500 mm |
| mass | approx. 1,600 kg |
| colour | gray RAL 7035 |
| Dimensions W x D x H = | 2000 x 1500 x 1500 mm |
