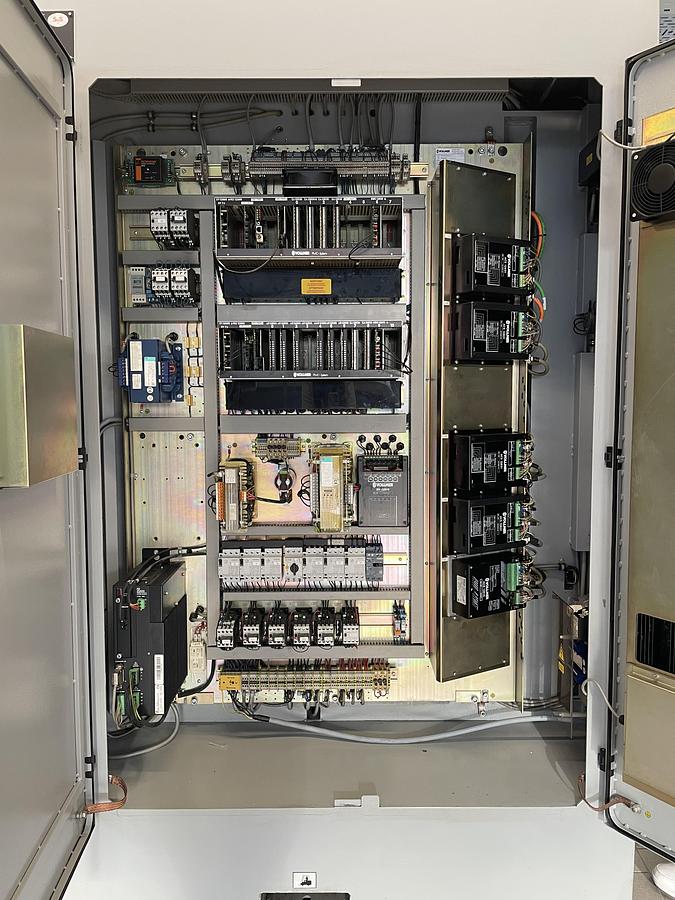

2003 Vollmer QM 110
No longer available
2003 Vollmer QM 110
Description
Suitable for automatic machining of PCD-tipped milling cutters, shaft tools, disk-shaped tools and optionally profile tools using the disk electro-erosion process. Accessories: Total enclosure,
Automatic fire extinguishing system,
Probe,

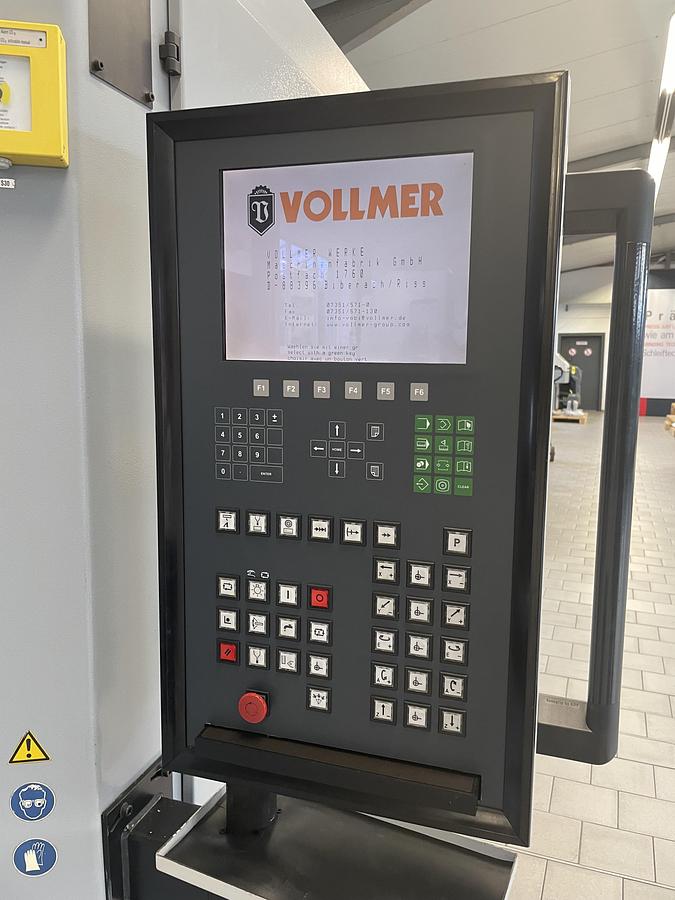

alphanumeric slide-in keyboard for data entry,
Software package for compact and radius hoggers, profile hoggers in rail travel and grooving processes,
Software for jointing cutters, routers, saws, flattening tools, etc.,
Software package for profile tools 4-way program for peripheral electrode,
automatic central lubrication,
Workpiece carrier ISO 40,
Measuring mandrel SK 40,
1 eroding disc holder,
Dressing tool,
Mist extractor.
Specifications
Manufacturer | Vollmer |
Model | QM 110 |
Year | 2003 |
Condition | Used |
Stock Number | M02077 |
Cutter outer diameter | max.250mm |
Shank tool diameter | from 10 - 100mm |
Outside diameter of disc-shaped tools | 380mm |
cutting length | Max. 20 mm |
clearance angle | 30° |
Tangential clearance angle | max.6° |
Radial clearance angle | -15° to + 6° |
X axis travel | 280 mm |
Y axis travel | 280 mm |
Chamfering | automatic max. 70° |
Workpiece carrier cone | SK 50 |
Z-axis travel | 330 mm |
Diameter of rotating electrode | Max. 150 mm |
Rotational electrode speed | 80 - 1500 rpm. |
mass | about 3000 kg |
A-axis rotation range | 360° |
B-axis swivel range | +/- 30 ° |
Tool weight max | 20 kg |
Dimensions L x W x H | = 1905 x 2520 x 2430 mm |
Connected load | 3.4 kW (400 V /50 Hz) |
colour | grey RAL 9002 |
