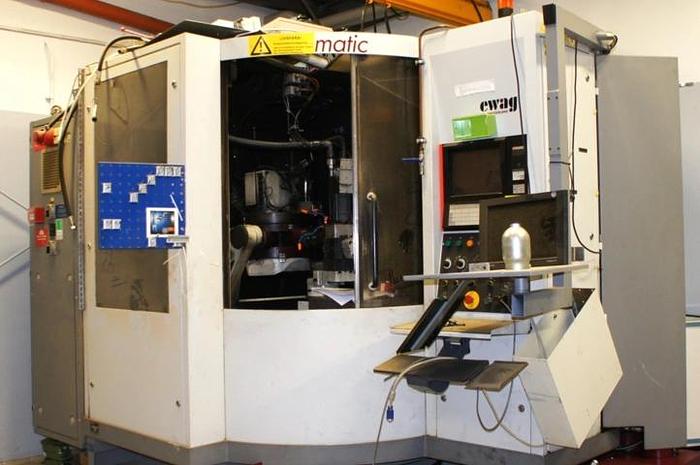

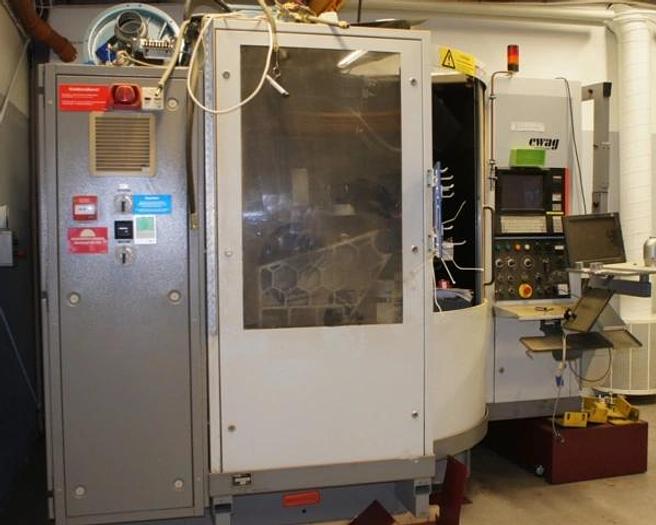

1998 Ewag Ewamatic
No longer available
1998 Ewag Ewamatic
Description
Suitable for regrinding and producing new indexable inserts and rotationally symmetrical tools made of HSS, HM,
cermet, ceramic, CBN and PKD.
Accessories:

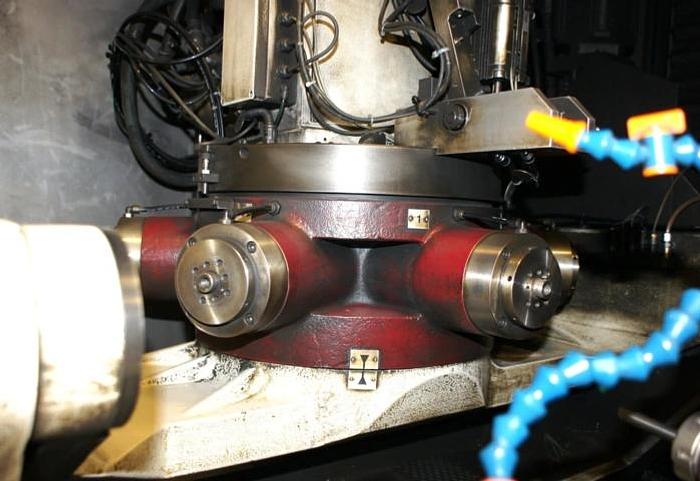

Inclined grinding head with 6 spindle ends,
robot loader,
control cabinet cooler,
automatic central lubrication,
measuring probe,
coolant system,
vapor separator
Specifications
| Manufacturer | Ewag |
| Model | Ewamatic |
| Year | 1998 |
| Condition | Used |
| Stock Number | M02042 |
| Spindle inclination A-axis | -10° to + 27° |
| Adjustment of transverse axis X | 360 mm |
| Height adjustment Y-axis | 240 mm |
| Feed axis Z | 240 mm |
| Oscillation size continuously variable | 0 -30mm |
| Oscillation frequency | 30/60min. |
| Radius division | 0.01 - 49mm |
| Rapid traverse X, Y, Z | 10 m/min. |
| Swivel axis B | +/- 120° |
| Grinding spindle inclination max. | -15° to +25° |
| Workpiece holder | SK 40 |
| Workpiece diameter | 0.2 - 200mm |
| Indexable inserts | from 3mm inner circle to 50mm circumferential diameter |
| Weight approx | 1200 kg |
| Grinding wheel drive power | 7,5 kW |
| Grinding wheel speeds | 200 - 6000/1000 - 12000 rpm. |
| Grinding wheel diameter | max 300 mm |
| Connected load | 16 kW (400 V/50 Hz) |
| Dimensions W x D x H = | 2712 x 2750 x 2250 mm |
| colour | stainless steel |
